Bearings by Type
Each landing page covers series, dimensions, load profile, applications, FAQs and reference part numbers across NTN, SKF, FAG, Timken, NSK and Koyo.
Deep Groove Ball Bearings
Deep groove ball bearings are the most widely used bearing type — versatile, high-speed capable, and able to handle both radial and moderate axial loads in eith…
- Series
- 6000, 6200, 6300, 6400, 16000, 62800
- Bore
- 10 mm – 480 mm
Tapered Roller Bearings
Tapered roller bearings handle combined heavy radial and axial loads in one direction. Always mounted in opposing pairs. SLS stocks both metric (320XX, 322XX, 3…
- Series
- 320, 322, 323, 302, 303, 313, 329, LM, HM, JLM, JM, HH
- Bore
- 15 mm – 320 mm
Spherical Roller Bearings
Spherical roller bearings tolerate misalignment up to 2° and shaft deflection, making them ideal for heavy industry. Two rows of barrel rollers on a common sphe…
- Series
- 22200, 22300, 23000, 23100, 23200, 24000, 24100
- Bore
- 20 mm – 1500 mm
Cylindrical Roller Bearings
Cylindrical roller bearings carry very high radial loads at high speeds. The separable design (NU, NJ, NUP, N, NF) determines axial location capability. Availab…
- Series
- NU2, NU3, NU4, NJ2, NJ3, NUP, N2, NN30
- Bore
- 15 mm – 320 mm
Angular Contact Ball Bearings
Angular contact ball bearings carry combined radial and axial loads. Contact angles of 15°, 25°, 30° and 40° determine axial capacity. Universally matchable pai…
- Series
- 7000, 7200, 7300, 7900, QJ
- Bore
- 10 mm – 320 mm
Thrust Bearings
Thrust bearings carry pure axial loads. Ball thrust bearings (511, 512, 513, 514) for moderate loads; cylindrical roller thrust (811, 812) and spherical roller …
- Series
- 511, 512, 513, 514, 811, 812, 294, 293, 292
- Bore
- 10 mm – 1000 mm
Needle Roller Bearings
Needle roller bearings use long, thin rollers to deliver very high radial load capacity in minimal cross-sectional height. Drawn cup (HK, BK), solid (NA, NK, NK…
- Series
- HK, BK, NA, NK, NKI, NKX, NKIA, NUTR
- Bore
- 3 mm – 200 mm

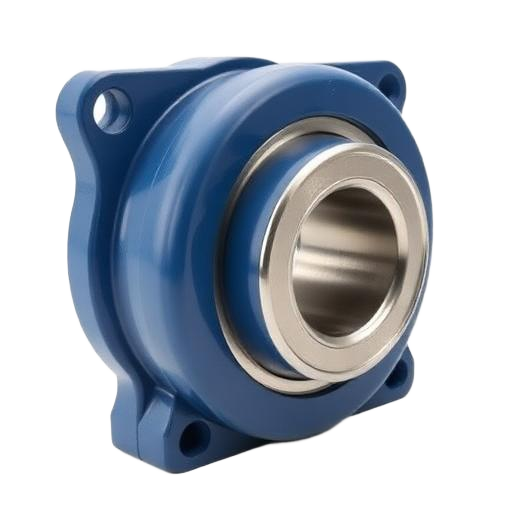

Housed Bearing Units (UC, UCP, UCF, UCT, UCFL)
Self-aligning ball bearing inserts pre-mounted in cast iron or pressed-steel housings — the workhorse of textile, conveyor and agricultural machinery. SLS stock…
- Series
- UC, UCP, UCF, UCT, UCFL, UCFC, UCX, UCFX, UCPX, AEL, UEL
- Bore
- 12 mm – 140 mm shaft
Flexure & Pivot Bearings
Flexure (flex pivot) bearings provide limited rotary motion with zero friction, zero stiction and no lubrication. Used in optics, aerospace gimbals, medical ins…
- Series
- R-series (R4002, R5002, R6002, R8002, R10002)
- Bore
- ID 6 – ID 25 mm
Wind Turbine & Renewable Energy Bearings
Specialised insulated and high-precision bearings for wind turbine generators, gearboxes, pitch and yaw drives. Gamesa, Vestas and Suzlon equivalents stocked. I…
- Series
- 6330, 6332, 6334 INSOCOAT / VL024 / MC3
- Bore
- 150 – 500 mm
Agricultural & Baler Bearings
Heavy-duty specialty bearings for balers, combines, harvesters and tractors. Claas, John Deere, New Holland and Case-IH equivalents. Built for shock loads, cont…
- Series
- 810-series, GW-series, AA-series, custom
- Bore
- 20 – 80 mm
Bearing Tools & Equipment
Induction heaters, hydraulic nuts, lock-nut sockets, bearing pullers and fitting tool kits. SKF TMEH, TMFS and TMBS series plus equivalents — for safe mounting,…
- Series
- TMEH, TMFS, TMBS, TMHP, TMBP
- Bore
- N/A
