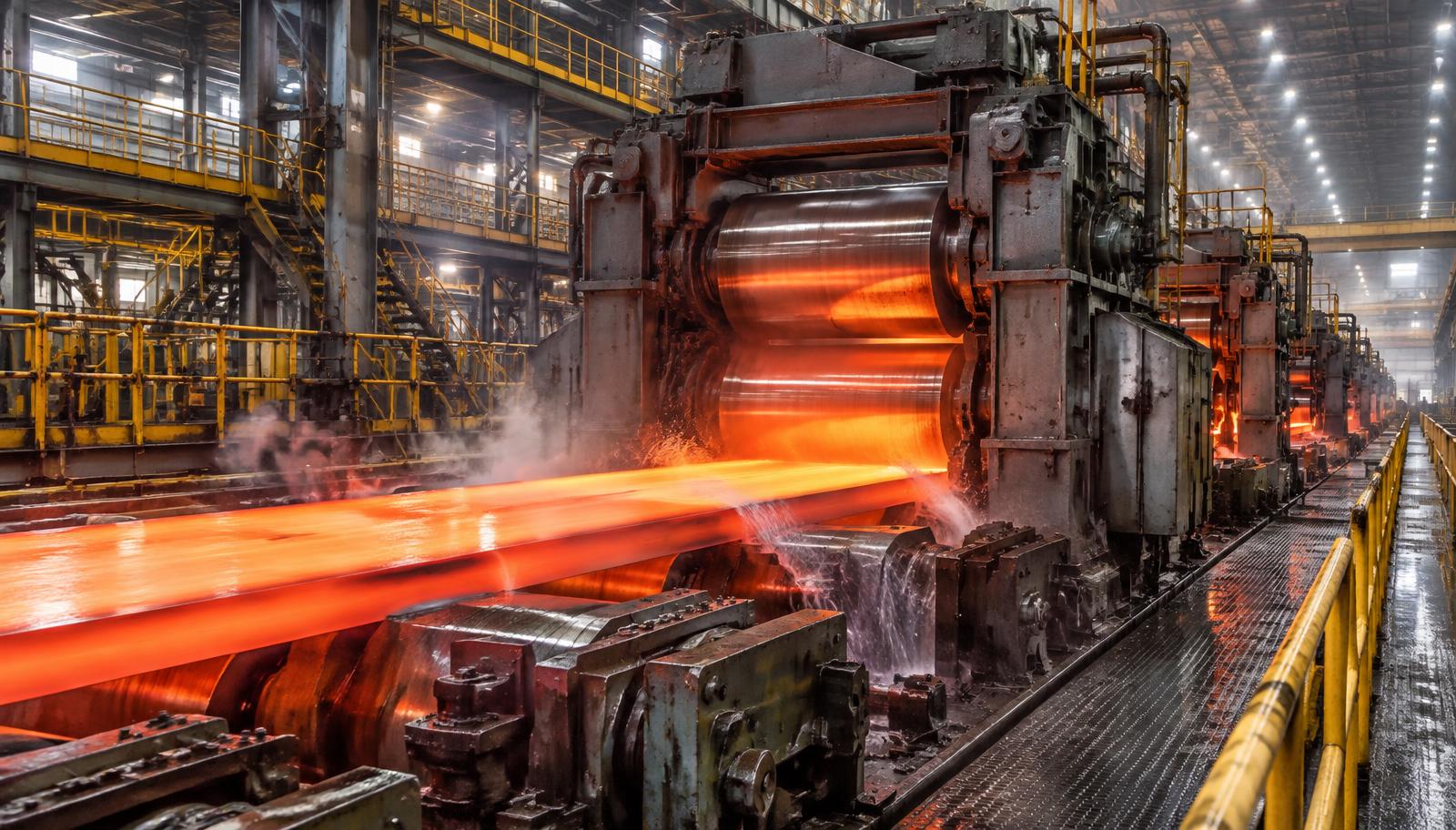

Steel plant & rolling mill
Special Size Rolling Mill Bearings
Heavy-duty brass-cage bearings for roughing stands, work rolls and backup rolls — supplied with C1/C2 clearance for hot and cold rolling mills.
Size table & approx. rates
| Roll position | Bearing No. | Type | d × D × B (mm) | Cage | Weight (kg) | Clearance | Approx. rate |
|---|---|---|---|---|---|---|---|
| C1 & C2 | 313445 | 4-Row Cylindrical Roller Bearing | 330 × 460 × 340 | Brass | 175 | C1/C2 | ~₹87,200 |
| C1 & C2 | 305269 | Double-Row Angular Contact Ball Bearing | 280 × 389.5 × 92 | Brass | 33.2 | C1/C2 | ~₹21,120 |
| Work Roll | 306841 | Double-Row Angular Contact Bearing | 180 × 259.5 × 33 | Brass | 12 | C1/C2 | ~₹8,000 |
| Work Roll | 353162 | Double-Direction Thrust Tapered Roller Bearing | 180 × 280 × 90 | Brass | 42 | C1/C2 | ~₹18,240 |
| Work Roll | 313811 | 4-Row Cylindrical Roller Bearing | 190 × 260 × 168 | Brass | 58 | C1/C2 | ~₹22,400 |
| Backup Roll | 314485 | 4-Row Cylindrical Roller Bearing | 340 × 480 × 350 | Brass | 192 | C1/C2 | ~₹92,000 |
| Backup Roll | 6064M | Deep Groove Ball Bearing | 320 × 480 × 74 | Brass | 46.1 | C1/C2 | ~₹21,920 |
Approximate selling rate per piece, excluding GST and freight. Subject to availability and quantity. Lead time on request — generally about 1 week to 60 days depending on quantity. Converted prices are indicative.

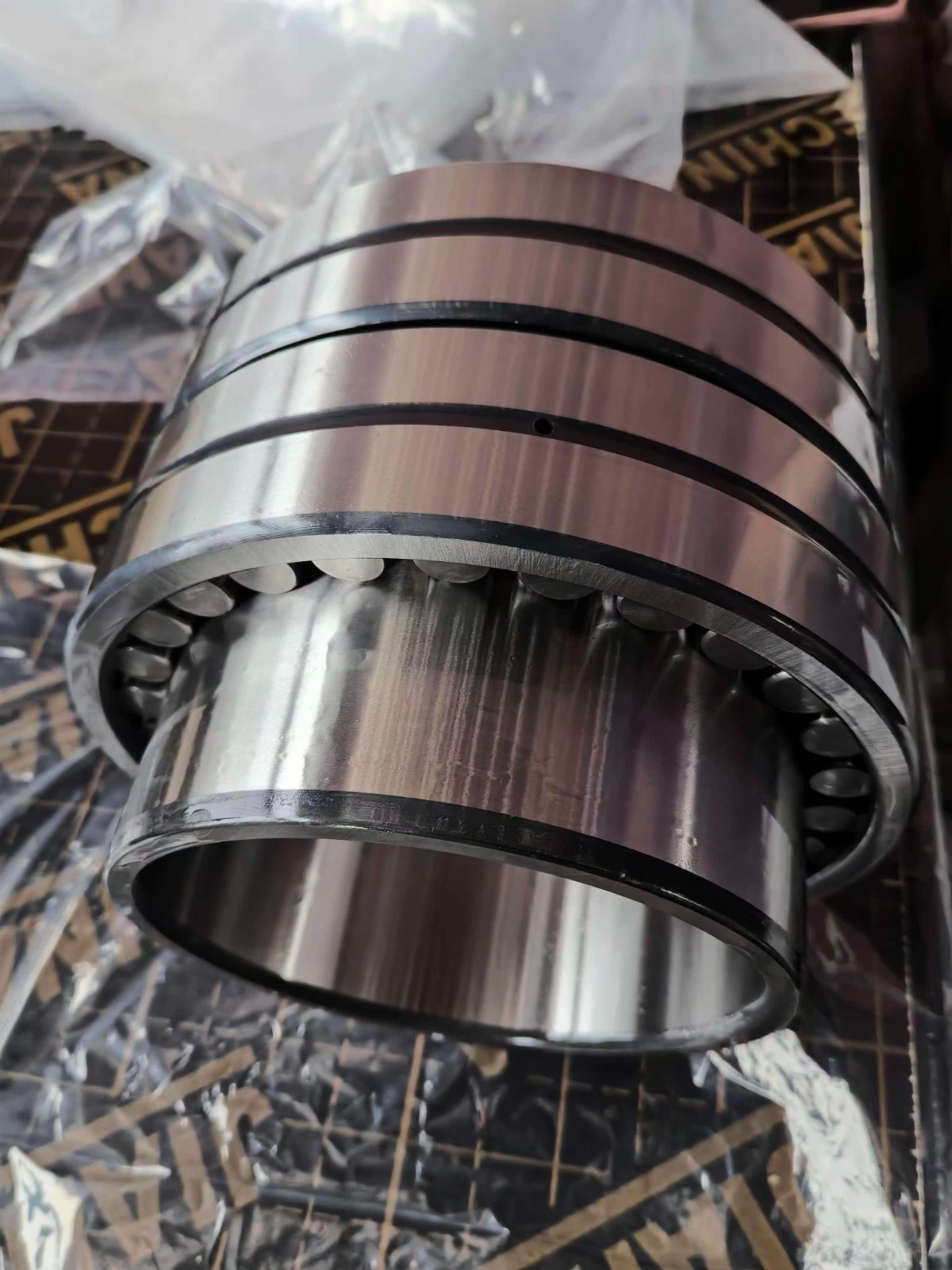

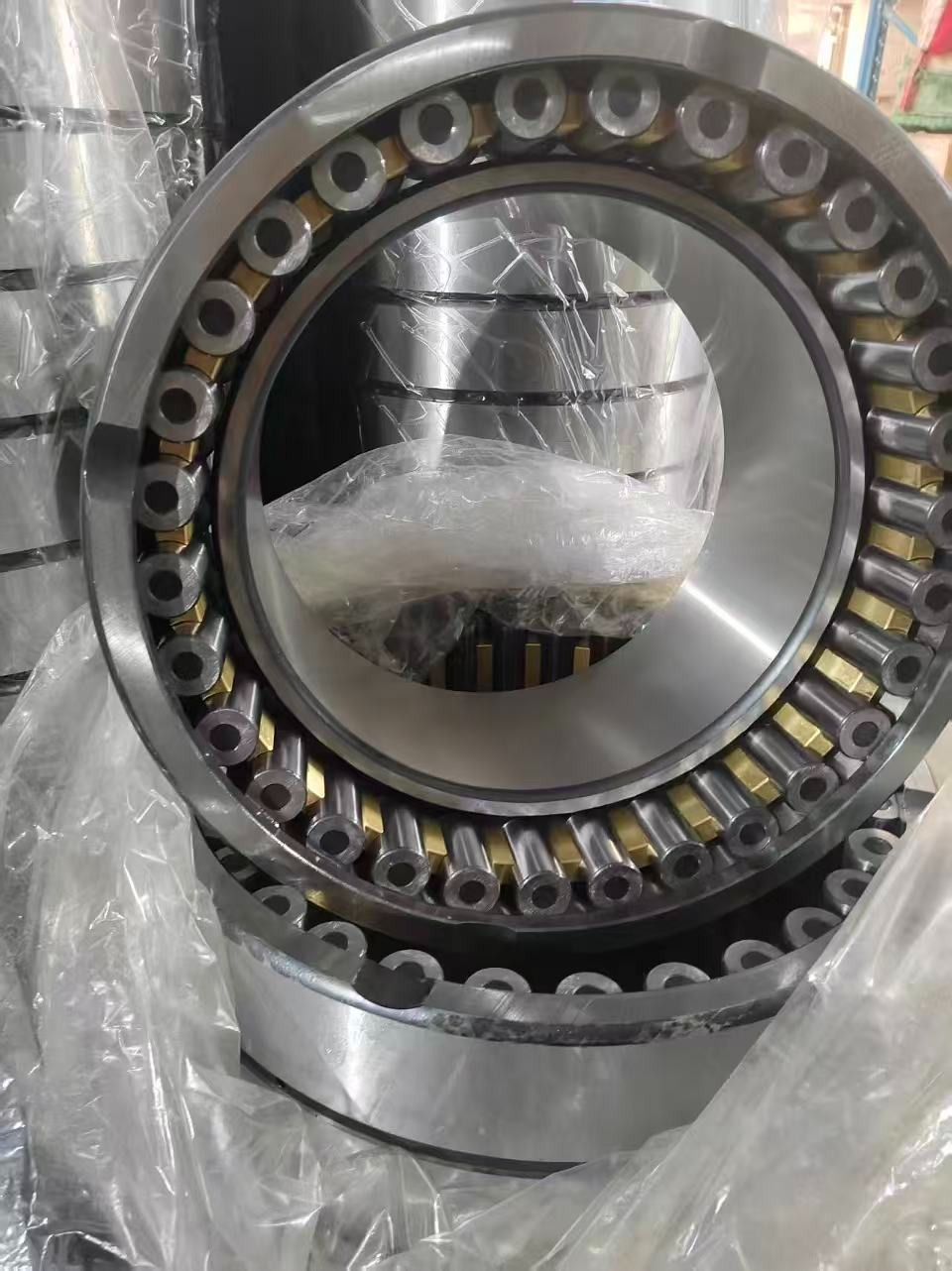

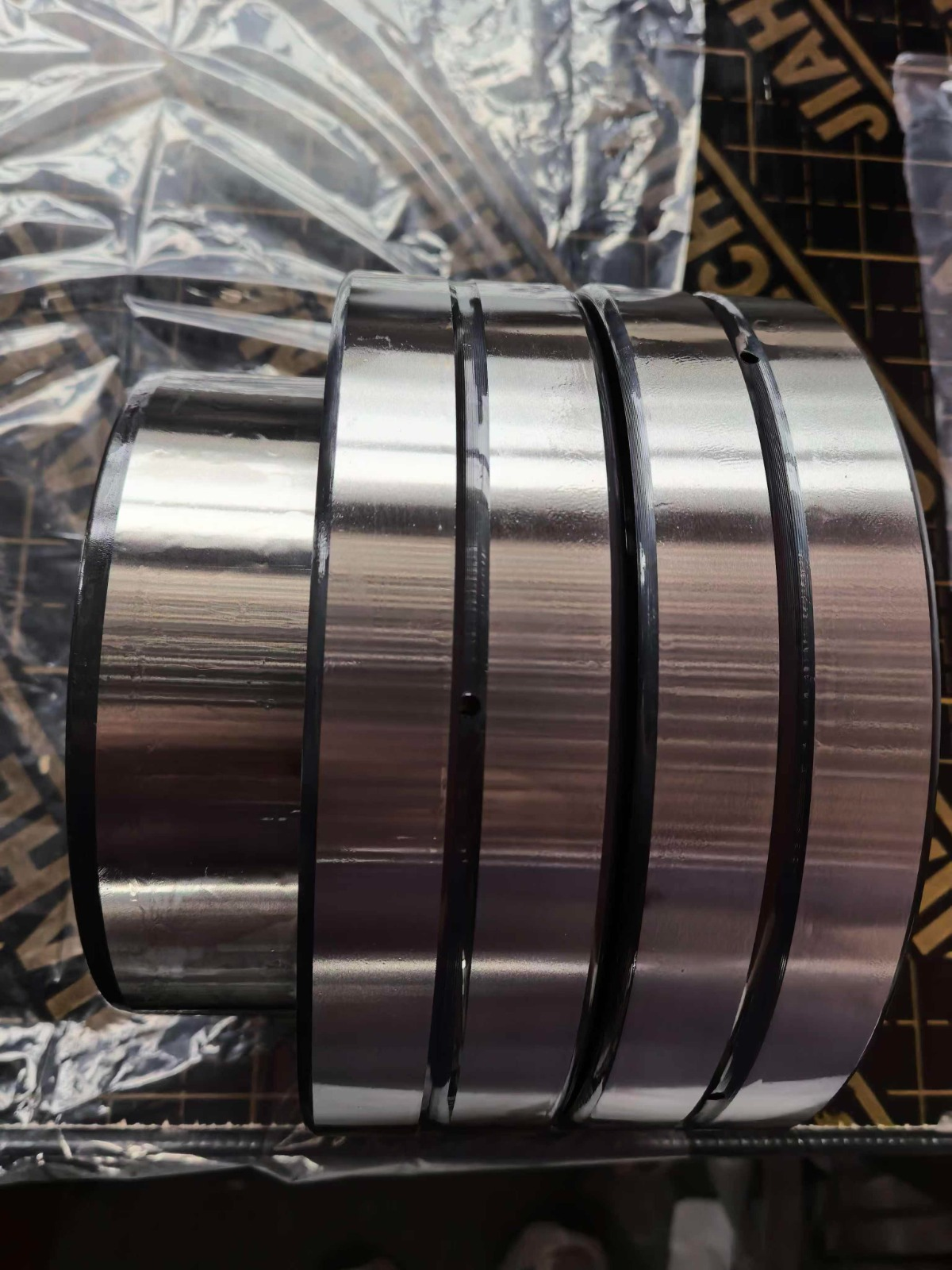

Actual bearings
C1 & C2 stands

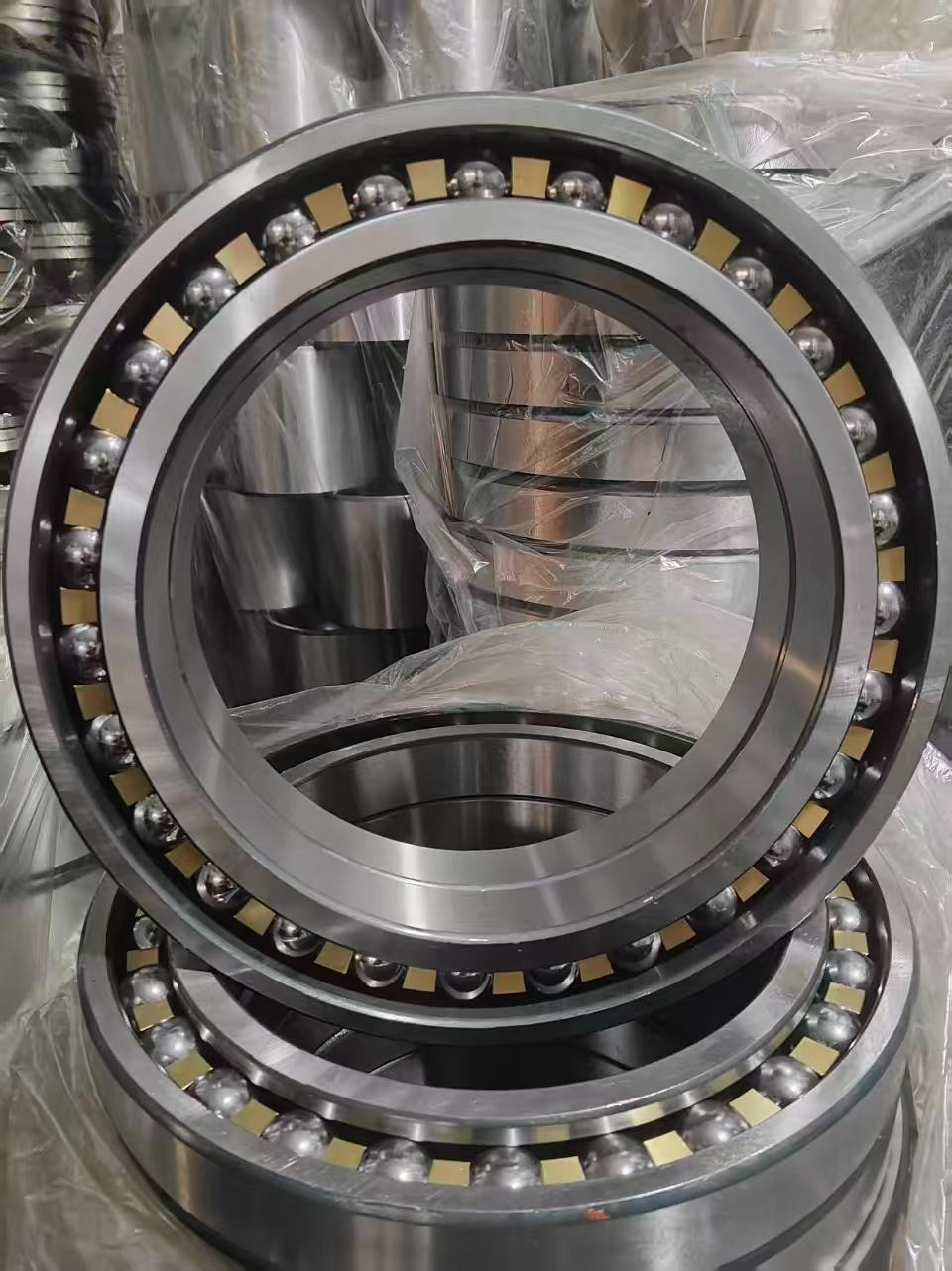

Roughing stands take the highest shock loads — 4-row cylindrical roller and double-row angular contact bearings carry radial and axial forces.
Work roll
Compact 4-row CRB with thrust tapered or angular contact bearings for axial location of the work roll chocks.
Backup roll

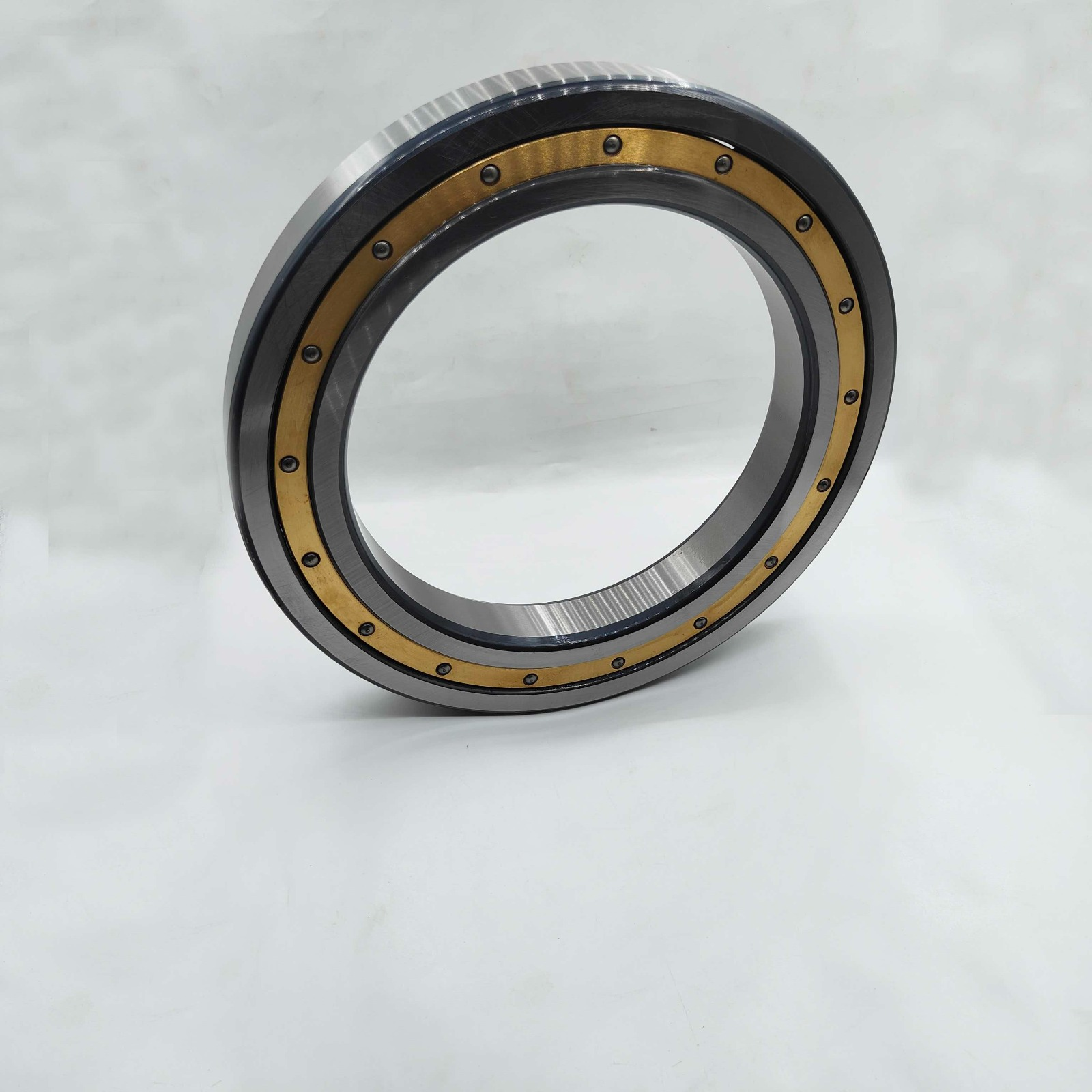

Large-bore 4-row CRB and brass-cage deep groove bearings support the backup rolls against rolling force.
Need a different mill bearing size or a drawing-based special? Send your bearing number or chock drawing.
Request a quote
