SS316L sintered 3 layer & 4 layer filters for pharma companies
Sintered stainless steel mesh filter elements built from FDA-approved SS316L and joined by precision machine welding. Manufactured at our partnered OEM facilities overseas in Vietnam, Austria and China, and supplied to pharmaceutical process plants across India and worldwide.
Also supplying housed bearing units, NTN housing units and combined bearings.
FDA-approved material
SS316L used in pharma plants worldwide — low carbon, corrosion resistant.
Precision machine welding
Repeatable seam quality, no brazing or adhesive contamination.
3 & 4 layer laminate
Protective, filter, support and reinforcement mesh sintered as one.
Partnered OEM plants
Vietnam, Austria and China — audited overseas manufacturing.
What the 3 layer and 4 layer construction does
A sintered filter is a stack of SS316L woven mesh layers diffusion bonded under heat and pressure into a single rigid sheet, then machine welded into the finished element. The layers each have a job:
- Layer 1 — protective mesh. Coarse SS316L mesh that shields the filter layer from mechanical damage during handling, cleaning and back-flushing.
- Layer 2 — filter mesh. The rated filtration layer. Micron rating is selected to your process spec — typically 5 to 200 micron for pharma duty.
- Layer 3 — support mesh. Carries the differential pressure across the element so the filter layer keeps its rating under load.
- Layer 4 — reinforcement (4-layer only). Additional heavy support mesh for high differential pressure, steam-in-place and repeated CIP/SIP cycles.

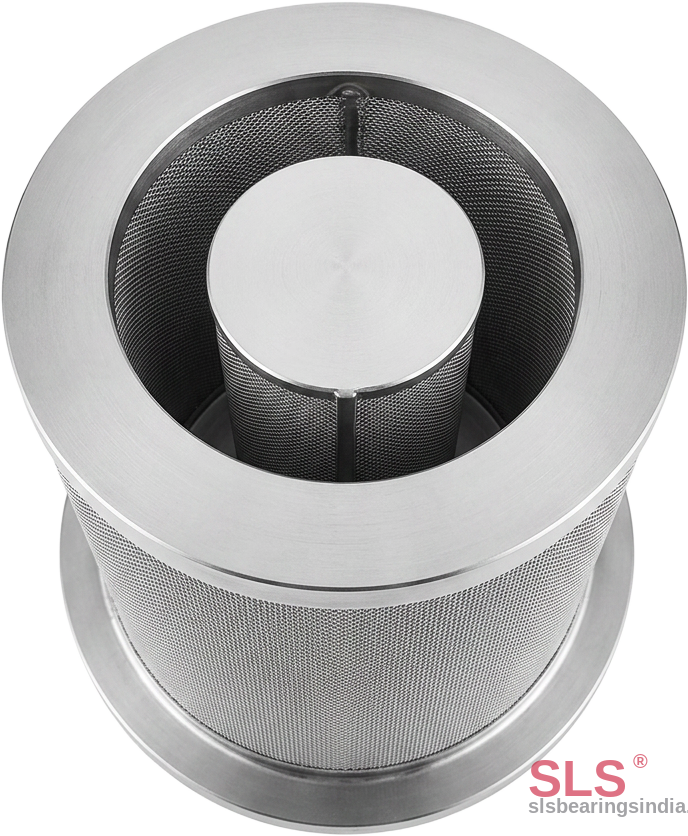

Machine-welded inner and outer sintered mesh cylinders.
Specifications
| Material | SS316L (1.4404) austenitic stainless steel, FDA-compliant |
|---|---|
| Construction | 3-layer or 4-layer sintered wire mesh laminate |
| Joining | Precision machine welding — no brazing, no adhesives |
| Micron rating | 5 – 200 µm (rated on request) |
| Surface finish | Pickled & passivated; electropolish optional |
| Temperature | Suitable for CIP / SIP steam cleaning cycles |
| Forms | Baskets, cylindrical candles, discs, cones, custom flanged elements |
| Manufacturing | Partnered OEM plants in Vietnam, Austria and China |
Dimensions, micron rating, flange pattern and finish are made to your drawing. Send your specification and we will quote from the most suitable partner plant.

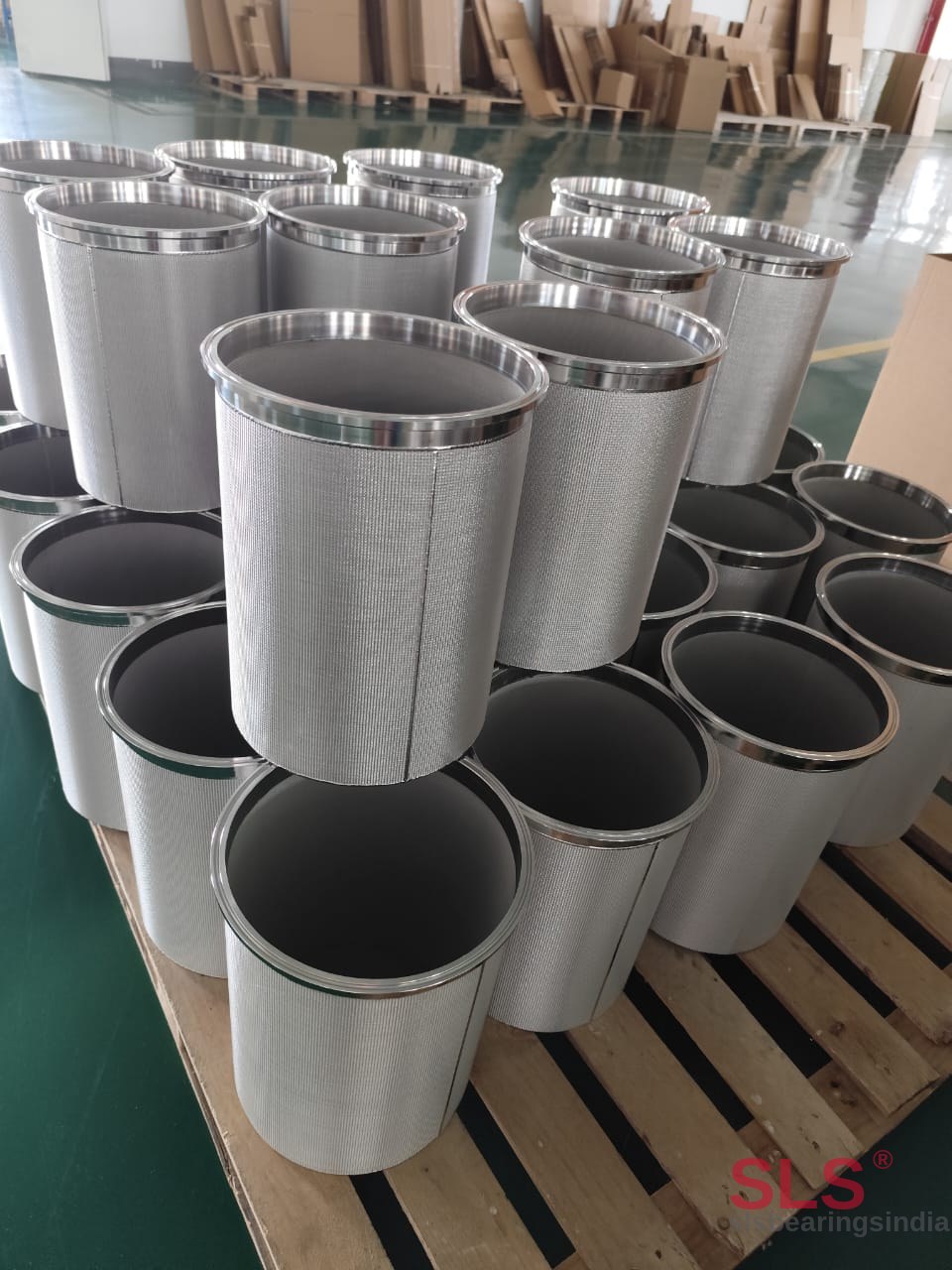

Production batch at a partnered OEM facility.
Where these filters are used
- API and bulk drug plants — solvent, slurry and mother liquor filtration
- Fluid bed dryers and granulators — product retention screens
- Nutsche filters, ANFD and sparger elements
- Purified water, WFI and process steam line strainers
- Food, beverage and dairy plants sharing the same hygiene standard
- Chemical and petrochemical process filtration
