UCP2 — Pillow blocks, cast housing, set-screw type

Complete size chart for the NTN UCP2 series. Click a model to open its full page with dimensions, 2D diagram and downloadable datasheet.

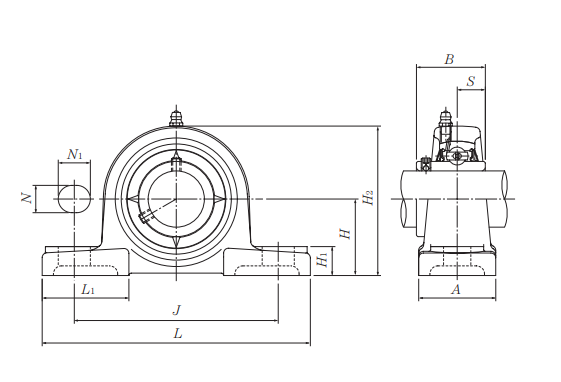

NTN UCP2 pillow block — 2D dimensional drawing with labelled H, L, J, A, N, H1, H2, L1, B and S — Nominal dimension references (see table columns below).

NTN UCP2 pillow blocks — nominal dimensions in mm.
Shaft (mm)	Unit number	H	L	J	A	N	N₁	H₁	H₂	L₁	B	S	Bolt	Bearing no.
12	UCP201D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC201D1
12.7	UCP201-008D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC201-008D1
15	UCP202D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC202D1
14.288	UCP202-009D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC202-009D1
15.875	UCP202-010D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC202-010D1
17	UCP203D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC203D1
17.463	UCP203-011D1	30.2	127	95	38	13	16	14	62	42	31	12.7	M10	UC203-011D1
20	UCP204D1	33.3	127	95	38	13	16	14	65	42	31	12.7	M10	UC204D1
19.05	UCP204-012D1	33.3	127	95	38	13	16	14	65	42	31	12.7	M10	UC204-012D1
25	UCP205D1	36.5	140	105	38	13	16	15	71	42	34.1	14.3	M10	UC205D1
20.638	UCP205-013D1	36.5	140	105	38	13	16	15	71	42	34.1	14.3	M10	UC205-013D1
22.225	UCP205-014D1	36.5	140	105	38	13	16	15	71	42	34.1	14.3	M10	UC205-014D1
23.813	UCP205-015D1	36.5	140	105	38	13	16	15	71	42	34.1	14.3	M10	UC205-015D1
25.4	UCP205-100D1	36.5	140	105	38	13	16	15	71	42	34.1	14.3	M10	UC205-100D1
30	UCP206D1	42.9	165	121	48	17	20	17	83	54	38.1	15.9	M14	UC206D1
26.988	UCP206-101D1	42.9	165	121	48	17	20	17	83	54	38.1	15.9	M14	UC206-101D1
28.575	UCP206-102D1	42.9	165	121	48	17	20	17	83	54	38.1	15.9	M14	UC206-102D1
30.163	UCP206-103D1	42.9	165	121	48	17	20	17	83	54	38.1	15.9	M14	UC206-103D1
31.75	UCP206-104D1	42.9	165	121	48	17	20	17	83	54	38.1	15.9	M14	UC206-104D1
35	UCP207D1	47.6	167	127	48	17	20	18	93	54	42.9	17.5	M14	UC207D1
31.75	UCP207-104D1	47.6	167	127	48	17	20	18	93	54	42.9	17.5	M14	UC207-104D1
33.338	UCP207-105D1	47.6	167	127	48	17	20	18	93	54	42.9	17.5	M14	UC207-105D1
34.925	UCP207-106D1	47.6	167	127	48	17	20	18	93	54	42.9	17.5	M14	UC207-106D1
36.513	UCP207-107D1	47.6	167	127	48	17	20	18	93	54	42.9	17.5	M14	UC207-107D1
40	UCP208D1	49.2	184	137	54	17	20	19	98	52	49.2	19	M14	UC208D1
38.1	UCP208-108D1	49.2	184	137	54	17	20	19	98	52	49.2	19	M14	UC208-108D1
39.688	UCP208-109D1	49.2	184	137	54	17	20	19	98	52	49.2	19	M14	UC208-109D1
45	UCP209D1	54	190	146	54	20	20	20	106	60	49.2	19	M14	UC209D1
41.275	UCP209-110D1	54	190	146	54	20	20	20	106	60	49.2	19	M14	UC209-110D1
42.863	UCP209-111D1	54	190	146	54	20	20	20	106	60	49.2	19	M14	UC209-111D1
44.45	UCP209-112D1	54	190	146	54	20	20	20	106	60	49.2	19	M14	UC209-112D1
50	UCP210D1	57.2	206	159	60	20	23	21	114	65	51.6	19	M16	UC210D1
46.038	UCP210-113D1	57.2	206	159	60	20	23	21	114	65	51.6	19	M16	UC210-113D1
47.625	UCP210-114D1	57.2	206	159	60	20	23	21	114	65	51.6	19	M16	UC210-114D1
49.213	UCP210-115D1	57.2	206	159	60	20	23	21	114	65	51.6	19	M16	UC210-115D1
50.8	UCP210-200D1	57.2	206	159	60	20	23	21	114	65	51.6	19	M16	UC210-200D1
55	UCP211D1	63.5	219	171	60	20	23	23	126	65	55.6	22.2	M16	UC211D1
50.8	UCP211-200D1	63.5	219	171	60	20	23	23	126	65	55.6	22.2	M16	UC211-200D1
52.388	UCP211-201D1	63.5	219	171	60	20	23	23	126	65	55.6	22.2	M16	UC211-201D1
53.975	UCP211-202D1	63.5	219	171	60	20	23	23	126	65	55.6	22.2	M16	UC211-202D1
55.563	UCP211-203D1	63.5	219	171	60	20	23	23	126	65	55.6	22.2	M16	UC211-203D1
60	UCP212D1	69.8	241	184	70	20	25	25	138	70	65.1	25.4	M16	UC212D1
57.15	UCP212-204D1	69.8	241	184	70	20	25	25	138	70	65.1	25.4	M16	UC212-204D1
58.738	UCP212-205D1	69.8	241	184	70	20	25	25	138	70	65.1	25.4	M16	UC212-205D1
60.325	UCP212-206D1	69.8	241	184	70	20	25	25	138	70	65.1	25.4	M16	UC212-206D1
61.913	UCP212-207D1	69.8	241	184	70	20	25	25	138	70	65.1	25.4	M16	UC212-207D1
65	UCP213D1	76.2	265	203	70	25	28	27	151	77	65.1	25.4	M20	UC213D1
63.5	UCP213-208D1	76.2	265	203	70	25	28	27	151	77	65.1	25.4	M20	UC213-208D1
65.088	UCP213-209D1	76.2	265	203	70	25	28	27	151	77	65.1	25.4	M20	UC213-209D1
70	UCP214D1	79.4	266	210	72	25	28	27	157	78	74.6	30.2	M20	UC214D1
66.675	UCP214-210D1	79.4	266	210	72	25	28	27	157	78	74.6	30.2	M20	UC214-210D1
68.263	UCP214-211D1	79.4	266	210	72	25	28	27	157	78	74.6	30.2	M20	UC214-211D1
69.85	UCP214-212D1	79.4	266	210	72	25	28	27	157	78	74.6	30.2	M20	UC214-212D1
75	UCP215D1	82.6	275	217	74	25	28	28	163	80	77.8	33.3	M20	UC215D1
71.438	UCP215-213D1	82.6	275	217	74	25	28	28	163	80	77.8	33.3	M20	UC215-213D1
73.025	UCP215-214D1	82.6	275	217	74	25	28	28	163	80	77.8	33.3	M20	UC215-214D1
74.613	UCP215-215D1	82.6	275	217	74	25	28	28	163	80	77.8	33.3	M20	UC215-215D1
76.2	UCP215-300D1	82.6	275	217	74	25	28	28	163	80	77.8	33.3	M20	UC215-300D1
80	UCP216D1	88.9	292	232	78	25	30	30	175	85	82.6	33.3	M20	UC216D1
77.788	UCP216-301D1	88.9	292	232	78	25	30	30	175	85	82.6	33.3	M20	UC216-301D1
79.375	UCP216-302D1	88.9	292	232	78	25	30	30	175	85	82.6	33.3	M20	UC216-302D1
80.963	UCP216-303D1	88.9	292	232	78	25	30	30	175	85	82.6	33.3	M20	UC216-303D1
85	UCP217D1	95.2	310	247	83	26	32	32	187	85	85.7	34.1	M20	UC217D1
82.55	UCP217-304D1	95.2	310	247	83	26	32	32	187	85	85.7	34.1	M20	UC217-304D1
84.138	UCP217-305D1	95.2	310	247	83	26	32	32	187	85	85.7	34.1	M20	UC217-305D1
87.313	UCP217-307D1	95.2	310	247	83	26	32	32	187	85	85.7	34.1	M20	UC217-307D1
90	UCP218D1	101.6	327	262	88	27	30	33	200	90	96	39.7	M22	UC218D1
88.9	UCP218-308D1	101.6	327	262	88	27	30	33	200	90	96	39.7	M22	UC218-308D1

Models with the “D1” suffix are the relubricatable type. For the maintenance-free type, order without the suffix.
