Round pressed flange, 3-bolt (SBPF / PF / PFC) · zinc plated pressed steel

SBPF / PF200 (PFC) Series — 21 sizes

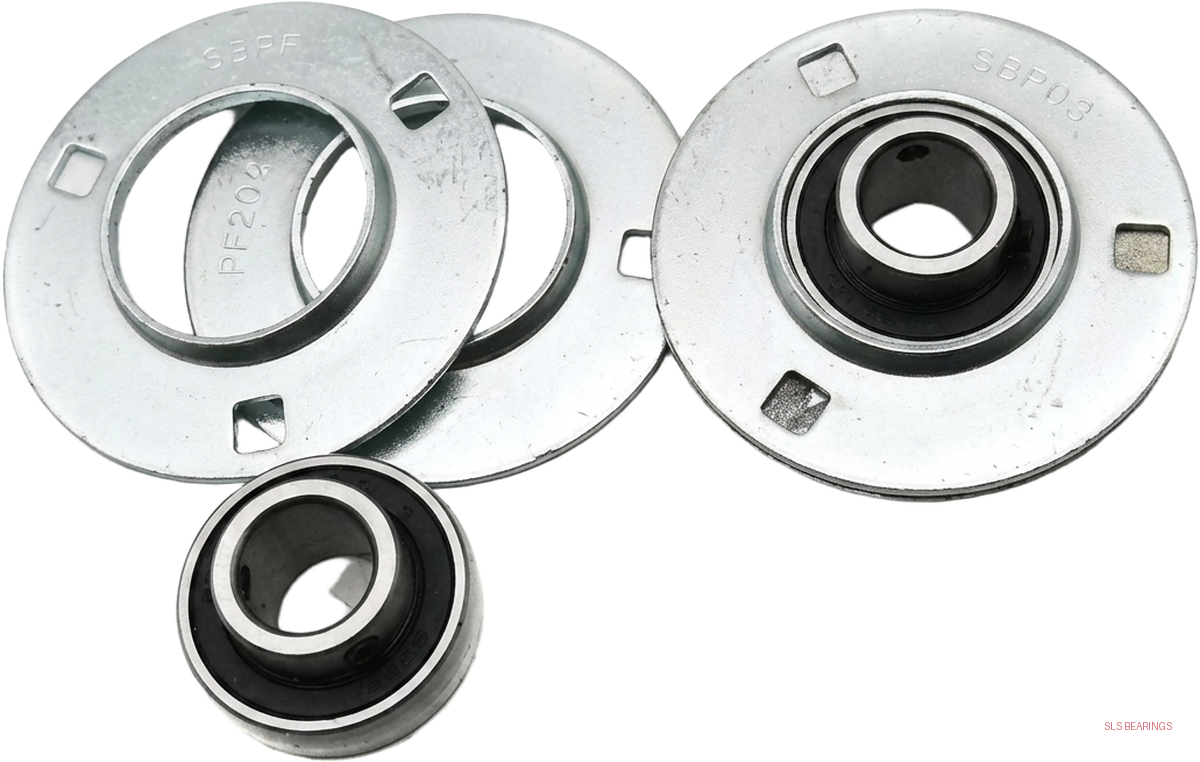

Pressed steel round flange bearing unit, catalogued as SBPF, PF or PFC depending on the maker — SBPF204, PF205, SBPF206 and so on. Three stamped bolt lugs on a circular zinc-plated flange for end-of-shaft mounting on plates and tube frames, fitted with UC, SB or SA wide-inner-ring insert bearings interchangeable with the PFL and PFT ranges.

SBPF / PF200 (PFC) size charts by insert series

All dimensions in mm

UC insert units

Wide-inner-ring insert with set-screw locking. UC dimensions and load ratings apply only to this table.

UC insert SBPF / PF200 (PFC) units with separate insert and housing dimensions.
Model	Bore	Insert	Bi	Be	Da	H	L	A	J	A1	H1	H2	N	C kN	C₀ kN	kg
UCPF203	17	UC203	27.4	12	40	82	60	15	63.5	4.5	29	49	7.1	9.95	4.75	0.11
UCPF204	20	UC204	31	14	47	91	68	17	71.5	4.5	34	56	9	12.8	6.65	0.13
UCPF205	25	UC205	34.1	15	52	96	72	19	76	4.5	36	61	9	14	7.85	0.14
UCPF206	30	UC206	38.1	16	62	114	82	20	90.5	5.5	41	72	11	19.5	11.3	0.25
UCPF207	35	UC207	42.9	17	72	127	95	23	100	5.5	45	81	11	25.7	15.3	0.4
UCPF208	40	UC208	49.2	18	80	149	—	23	119	7	91	—	13.5	29.1	17.8	0.5
UCPF209	45	UC209	49.2	19	85	150	—	23	120.5	7	98	—	13.5	32.5	20.4	0.6

SB insert units

Narrow-inner-ring insert with set-screw locking. SB widths and ratings are listed separately from UC.

SB insert SBPF / PF200 (PFC) units with separate insert and housing dimensions.
Model	Bore	Insert	Bi	Be	Da	H	L	A	J	A1	H1	H2	N	C kN	C₀ kN	kg
SBPF203	17	SB203	22	12	40	82	60	15	63.5	4.5	29	49	7.1	9.55	4.78	0.11
SBPF204	20	SB204	25	14	47	91	68	17	71.5	4.5	34	56	9	10.4	5	0.13
SBPF205	25	SB205	27	15	52	96	72	19	76	4.5	36	61	9	On request	On request	0.14
SBPF206	30	SB206	30	16	62	114	82	20	90.5	5.5	41	72	11	15.7	8.64	0.25
SBPF207	35	SB207	32	17	72	127	95	23	100	5.5	45	81	11	20.8	11.7	0.4
SBPF208	40	SB208	34	18	80	149	—	23	119	7	91	—	13.5	On request	On request	0.5
SBPF209	45	SB209	41.2	19	85	150	—	23	120.5	7	98	—	13.5	On request	On request	0.6

SA insert units

Eccentric-collar insert. Unverified manufacturer-specific widths and ratings are shown as on request, not copied from UC or SB.

SA insert SBPF / PF200 (PFC) units with separate insert and housing dimensions.
Model	Bore	Insert	Bi	Be	Da	H	L	A	J	A1	H1	H2	N	C kN	C₀ kN	kg
SAPF203	17	SA203	On request	On request	40	82	60	15	63.5	4.5	29	49	7.1	On request	On request	0.11
SAPF204	20	SA204	On request	On request	47	91	68	17	71.5	4.5	34	56	9	On request	On request	0.13
SAPF205	25	SA205	On request	On request	52	96	72	19	76	4.5	36	61	9	On request	On request	0.14
SAPF206	30	SA206	On request	On request	62	114	82	20	90.5	5.5	41	72	11	On request	On request	0.25
SAPF207	35	SA207	On request	On request	72	127	95	23	100	5.5	45	81	11	On request	On request	0.4
SAPF208	40	SA208	On request	On request	80	149	—	23	119	7	91	—	13.5	On request	On request	0.5
SAPF209	45	SA209	On request	On request	85	150	—	23	120.5	7	98	—	13.5	On request	On request	0.6

Bi is inner-ring width; Be is outer-ring width. Housing mounting dimensions may be shared where the same PF housing is used, but insert widths and load ratings are family-specific. “On request” means a reliable maker-specific value is not published. Housing: cold-rolled pressed (stamped) steel, zinc plated (electro-galvanised), bright finish.
