233-25-2500-FF Triple-Row Roller Slew Ring, Internal Gear

Name: 233-25-2500-FF Three-Row Roller Internal Gear Slewing Bearing
Brand: SLS

Heavy-duty three-row roller slewing bearing specified for engine mounting, tilting and 360° rotation fixtures in aerospace integration platforms. Supplied as the specified model or an equivalent with identical dimensions and equal or higher static and dynamic load capacity.

Request quotation Email for availability

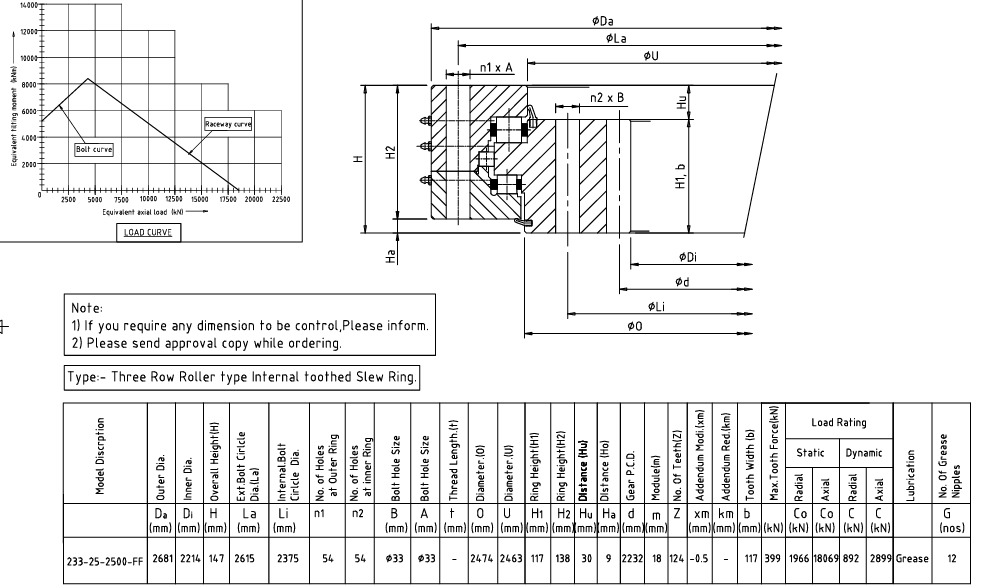

Reference drawing — final approval drawing shared before order.

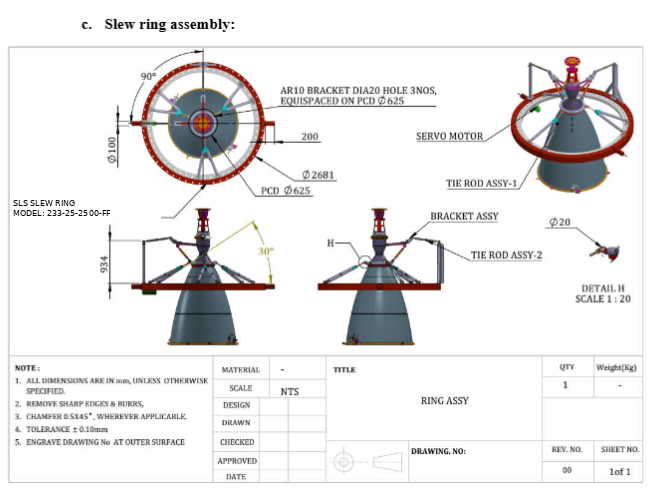

233-25-2500-FF slew ring assembly drawing for aerospace engine fixture, Ø2681 mm — Slew ring assembly — ring with servo motor, brackets and tie rods.

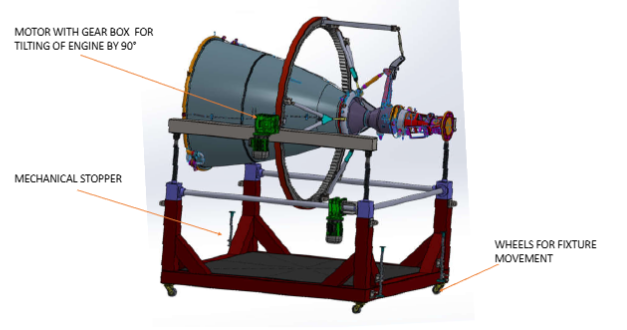

Aerospace engine tilting fixture using 233-25-2500-FF slewing bearing — Engine fixture — gearbox motor tilts the engine 90°, with mechanical stopper and wheels.

Specifications

Model	233-25-2500-FF (or equivalent)
Type	Three-row roller, internally toothed slew ring
Outer diameter Da	2681 mm
Inner diameter Di	2214 mm
Height H	147 mm
Outer ring bolt circle La	2615 mm · 54 holes
Inner ring bolt circle Li	2375 mm · 54 holes
Gear	Internal, module 18, pitch circle ≈ 2232 mm
Lubrication	Grease, 12 lube points
Static / dynamic load ratings	As per drawing — shared with quotation
Quantity per fixture	1 (slew ring assembly)

Why three-row roller

Separate roller rows carry axial, radial and tilting-moment loads independently — the stiffest slew ring design for heavy, precise rotation.

Fixture use

Engine mounted by tie rods at 120°, rotated 360° at 2–3°/sec by motor and tilted up to 90° in plummer blocks.

Documentation

Guarantee certificate, dimensional and material reports, and approval drawing supplied for tender compliance.

Values read from the reference drawing; please confirm critical dimensions with us before ordering.
