Also written as ZARF75185TV

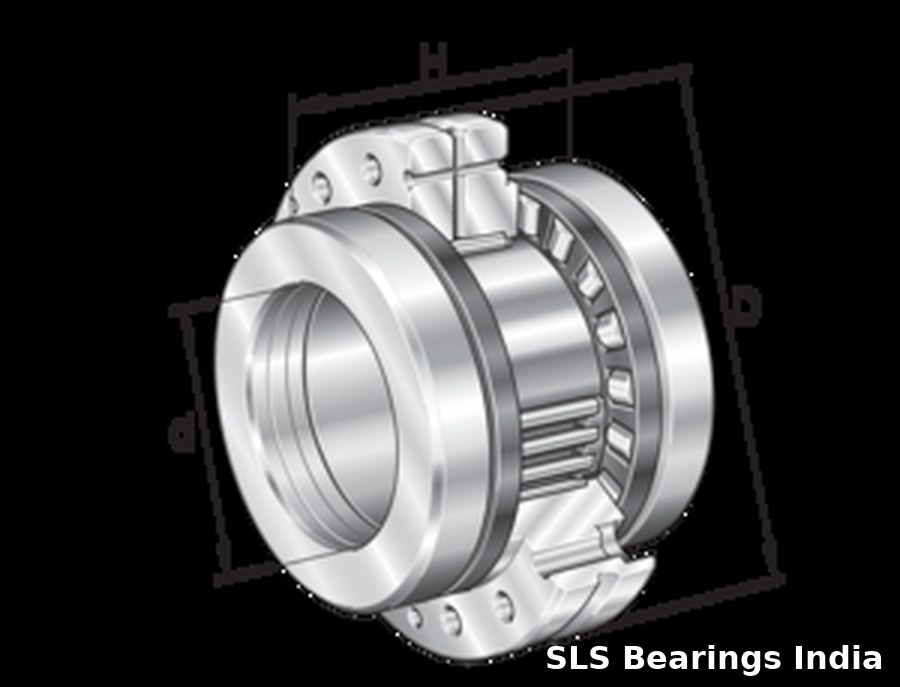

ZARF75185-TV needle roller/axial cylindrical roller bearing — double direction, for screw mounting. Bore 75 mm × OD 185 mm × height 100 mm. Plastic cage (PA66, suffix TV). Indicative price ₹3–4 lakh; lead time approx. 6–7 months. Mail us to confirm current availability status before ordering.

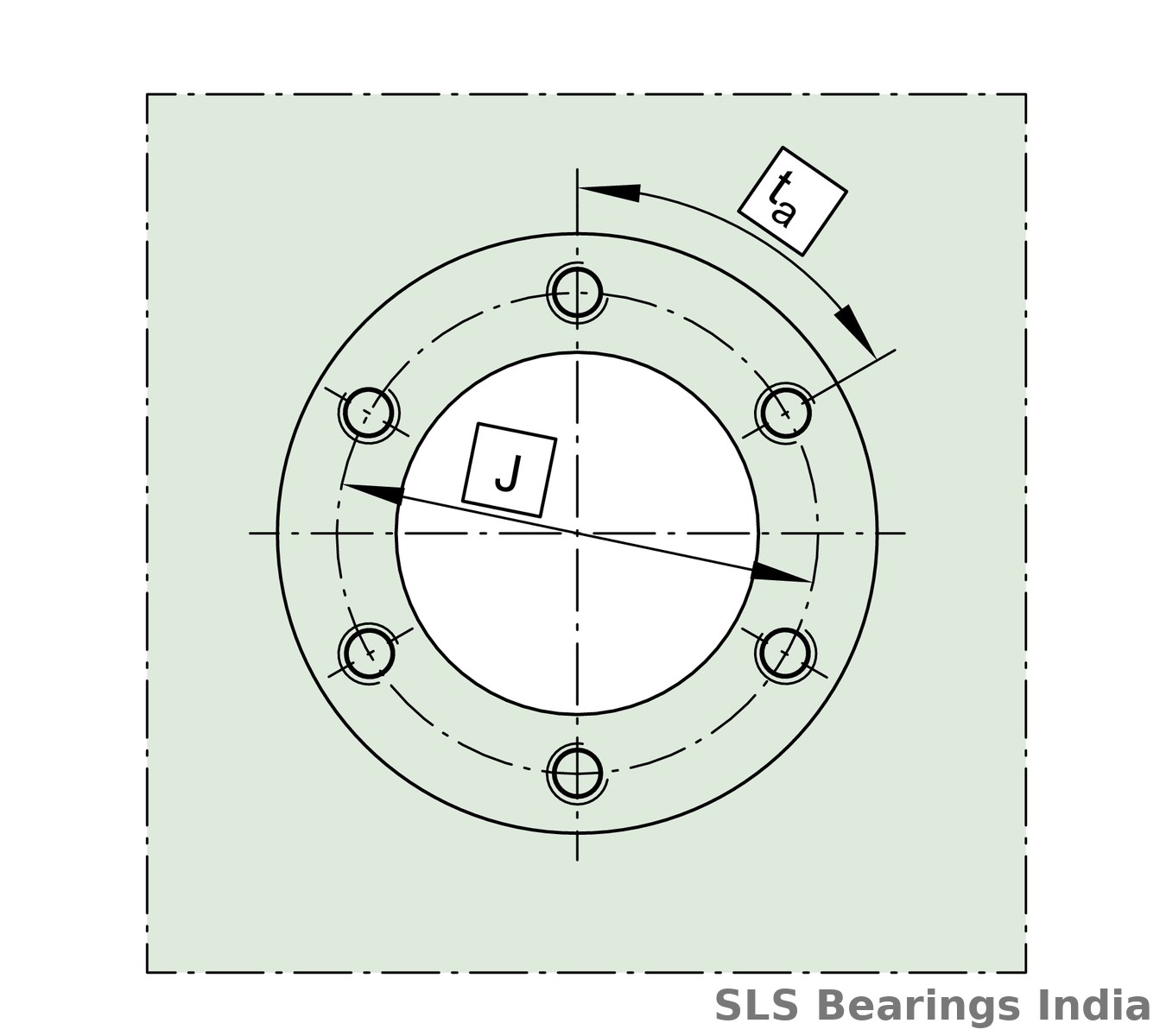

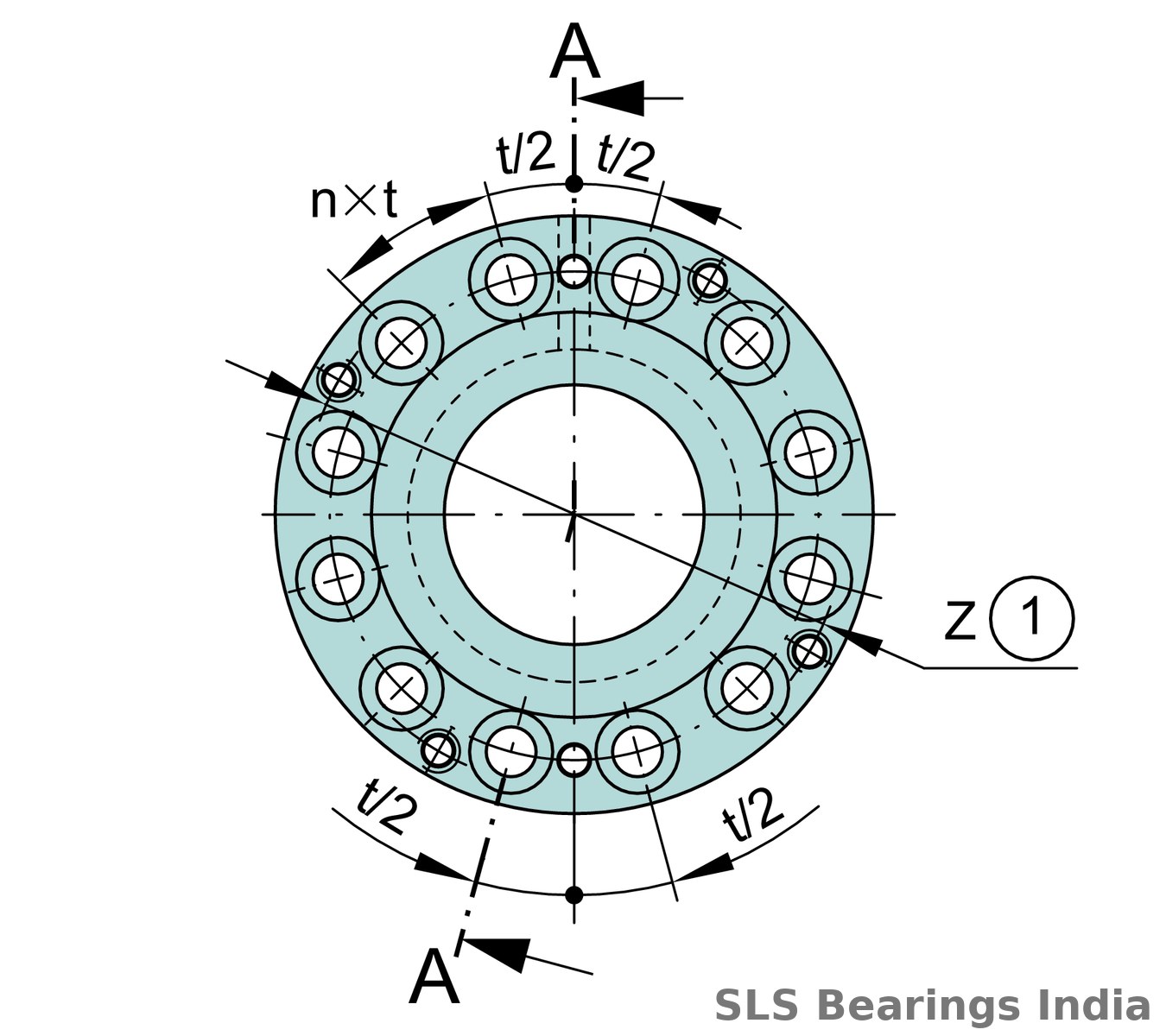

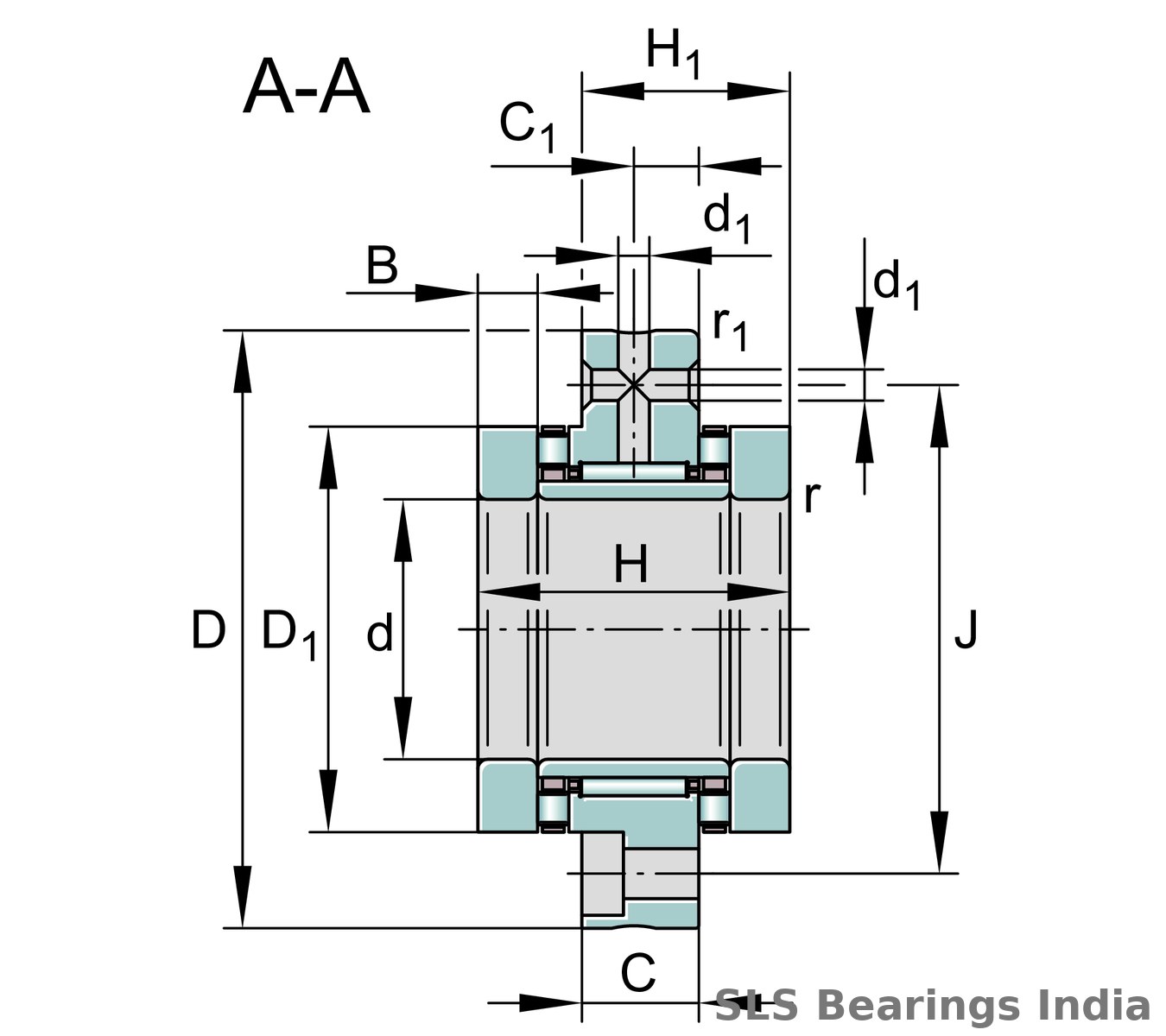

ZARF series — double direction, for screw mounting. TV = PA66 plastic cage. Detailed dims: H1 62 mm, C 27 mm, C1 15 mm, D1 135 mm, B 21 mm, r min 0.3 mm, r1 min 1 mm, lubrication hole d1 6 mm, pitch circle J 155 mm, 12 screwing holes at 30° split.
ZARF75185-TV is a double-direction needle roller/axial cylindrical roller bearing for screw mounting, used where high axial loads act in both directions together with radial loads — typical in machine-tool screw drives and rotary tables.
Availability: made-to-order / import item. Indicative price ₹3,00,000–₹4,00,000. Approximate lead time 6–7 months. Please mail us with your quantity to get the current availability status and a firm quote.
