SYF 35 TF / NTN UCUP207D1 bearing
NTN

SYF 35 TF / NTN UCUP207D1

Also written as SYF35TF/NTNUCUP207D1, SYF-35-TF-/-NTN-UCUP207D1

SYF 35 TF equivalent NTN UCUP207D1 UCUP207 D1 tapped base threaded pillow block 35 mm YAR 207-2F SYF 507

Request a quote

Specifications

Brand
NTN
Type
housed units
Bore (d)
35 mm
Width (B)
42.9 mm
d1
46.1 mm
Dynamic load (C)
25.5 kN
Static load (C₀)
15.3 kN
Fatigue load (Pu)
0.655 kN
Limiting speed
5,300 rpm
Weight
1.3 kg

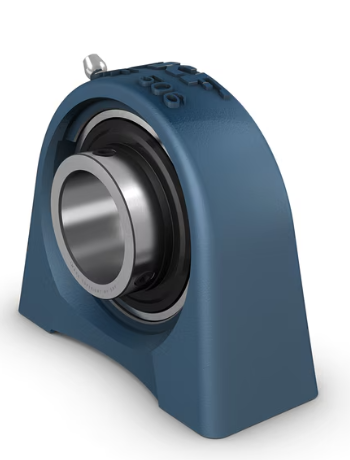

SYF 35 TF is a 35 mm short-base (tapped-base) cast-iron pillow block ball bearing unit with threaded bolt holes, an extended inner ring and set-screw locking. Its NTN equivalent is UCUP207D1 (UCUP207 D1).

SLS supplies both brands: the original SYF 35 TF and the NTN UCUP207D1. Both units share the same 35 mm shaft, centre height and bolt centres — the only difference is the mounting thread system (SYF 35 TF uses M10 metric threads; check the NTN UCUP207D1 thread against your base before swapping).

Looking for an SYF 35 TF equivalent, UCUP207D1 dealer or UCUP207 D1 NTN price in India? Send an enquiry for current price and availability.
